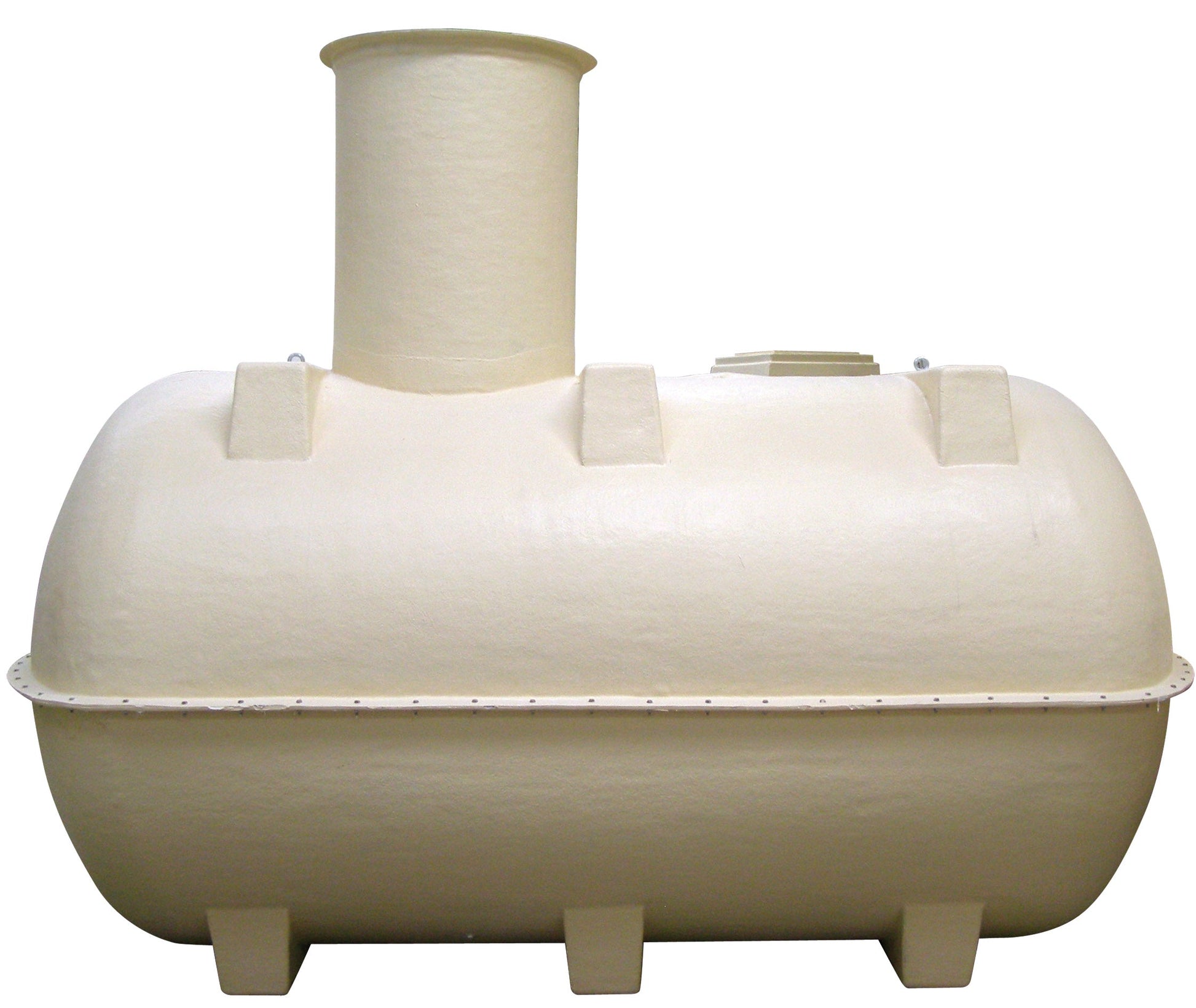

Marsh 18,000l Shallow Septic Tank

Marsh 18,000l Shallow Septic Tank

£4,600.00 GBP
£4,600.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

Septic tank for basic treatment to off-mains wastewater



Horizontal septic tanks provide settlement and some biological treatment to raw domestic sewage(wastewater), however, the domestic wastewater is not fully treated and must receive additional treatment before discharge to the water environment – the most common method being to spread the waste to land via an underground drainage field.

As an optional extra, Marsh can supply horizontal septic tanks with a unique Polylok filter that is designed to further reduce suspended solids by up to 40% – prolonging system efficiency and drainage field life.

Benefits

  • Low profile versions for high water table or hard rock site conditions
  • Heavy duty shell as standard to enable installation in all ground conditions
  • Integral lifting eyes for improved on-site handling
  • Keying-in’ assists anchoring into granular or concrete surround
  • Pedestrian cover included as standard

    Specification



    Size Length
    +/-50mm    		 Width
    +/-50mm    		 Height
    +/-50mm    		 Inlet invert Inlet dia Outlet invert Outlet dia
    2800L 3000 1250 1750 500 110 800 110
    3800L 4000 1250 1750 500 110 800 110
    4500L 2650 1600 2100 500 110 800 110
    6000L 2950 1900 2400 500 110 800 160
    8000L 3640 1900 2400 500 160 800 160
    10000L 4200 1900 2400 500 160 800 160
    12000L 5200 1900 2400 500 160 800 160
    14000L 5840 1900 2400 500 160 800 160
    16000L 6700 1900 2400 500 160 800 160
    18000L 7500 1900 2400 500 160 800 160
    20000L 8100 1900 2400 500 160 800 160
