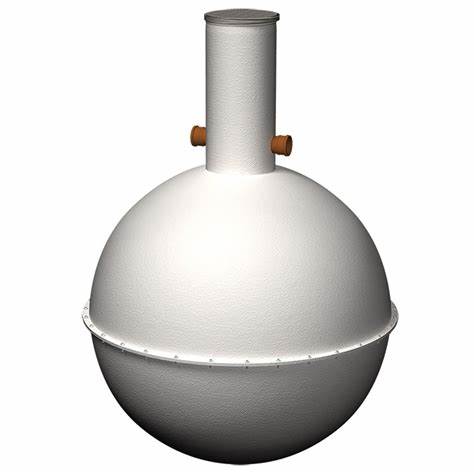

Marsh 2,800l Septic Tank
Marsh 2,800l Septic Tank
Description
Septic tank for basic treatment to off-mains wastewater
The Marsh Euro Septic tank offers significant technical improvements and cost-savings over current market options.
The range, available in capacities from 2800-4500 litres, is CE marked to comply with Construction Product Regulations and compliments the company’s existing range of horizontal septic tanks.
The Euro:Septic is tested and certified to EN12566-1 Annex B and benefits from an outstanding hydraulic efficiency of 99.63%. Horizontal septic tanks up to 20,000 litres are also tested and certified to EN12566-1.
Normally the simplest and most economical means of treating wastewater from small developments, a septic tank holds sewage and allows solids to settle into sludge at the bottom of the tank. Here it is naturally broken down by a process known as anaerobic digestion, which provides settlement and some biological treatment. The effluent is not fully treated and must receive additional treatment before discharge to the water environment – the most common method being to spread the effluent to land via an underground drainage field.
KEY
1 Inlet
2 Settlement chamber
3 Polylok filter
4 Outlet
5 Access cover
Benefits
- Tested to BSEN12566:1 and CE-marked to ensure compliance with latest environmental and Building Regulations requirements
- Provides an outstanding 99.63% hydraulic efficiency
- Unique Polylok filter improves effluent quality and prolongs drainage field life (Euro:Septic units only)
- Traditional ‘onion-style’ tanks for standard installations
- Low profile versions for high water table or hard rock site conditions
- Heavy duty shell as standard to enable installation in all ground conditions
- Integral lifting eyes for improved on-site handling
- ‘Keying-in’ assists anchoring into granular or concrete surround
- Pedestrian cover included as standard
Specification
Size | Diameter +/-50mm |
Height +/-50mm |
Inlet invert | Inlet dia | Outlet invert | Outlet dia |
---|---|---|---|---|---|---|
2800L | 1870 | 2780 | 1000 | 110 | 1040 | 110 |
3800L | 2075 | 3000 | 1000 | 110 | 1040 | 110 |
4500L | 2196 | 3100 | 1000 | 110 | 1040 | 110 |
