Description

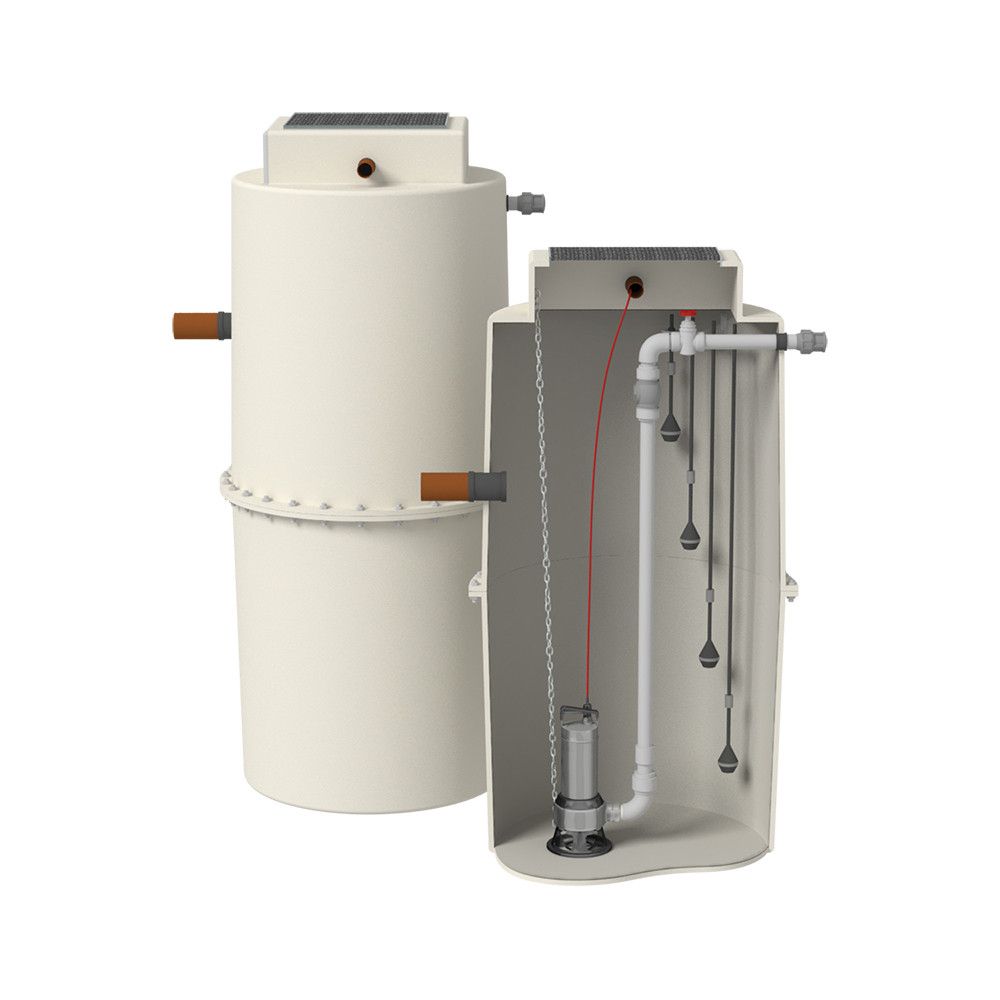

Designed for use in combination with a package sewage treatment plant, this single pump station operates by gathering wastewater and pumping it at high pressure to the sewer system, after which natural gravity takes over. The station's single free-standing design makes it easy to install and maintain, ensuring reliable operation.

Level control devices such as a float switch or liquid level sensor monitor the wastewater as it enters the pump station chamber from the sewage treatment plant. When triggered, the pump uses high pressure to lift the wastewater through a system of discharge pipes into the public sewer. As a single pump station, it is suitable for ensuring maximum efficiency and reliability in transferring wastewater from outbuildings with a toilet or home extension to the public sewer system.

Standards & Certification

• British/European Standard: BS EN 12050, BS EN 752 and BS EN 752-6

Benefits

• Single pump station designed for use with a package sewage treatment plant
• Pumps wastewater at high pressure to the sewer system
• Single free-standing design for easy installation and maintenance
• Level control devices monitor wastewater as it enters the pump station chamber
• High pressure pump ensures maximum efficiency and reliability
• Suitable for outbuildings with a toilet or home extension
• Available in different sizes
• All stations have 32mm outlet connection and a 500m inlet invert

Specification

• 600mm x 1500mm
• Outlet Size - 32mm
• Chamber material - GRP
• Access Cover - 450mm
• Max Lift - 6m
• Litres Per Minute - 120lpm
• Single Pump
