Marsh

Marsh Grease Separator 10,000 Litres

Marsh Grease Separator 10,000 Litres

Regular price £4,000.00 GBP
Regular price £4,200.00 GBP Sale price £4,000.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

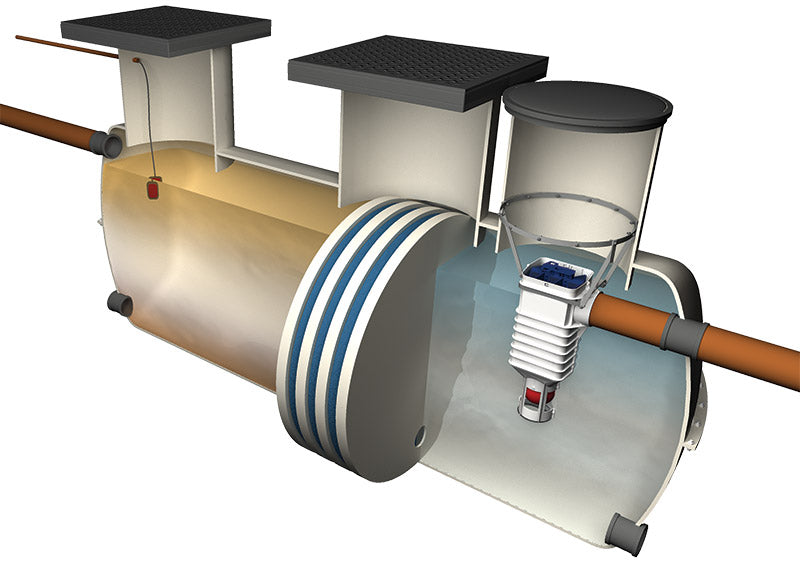

Available in capacities from 2800 to 20,000 litres, Marsh Industries’ Grease Management System (GMS★) range of grease traps effectively prevents Fats, Oils and Grease (FOG) from entering the drainage network or sewage treatment plants.

Testing and verification
Marsh Industries has reassessed the currently prescribed testing methods for grease traps and devised its own unique test rig and analysis at Loughborough University.

The rig, put to test for 12 months, addressed calls from the industry for clarity in testing procedures of grease trap technology. After completing trials, the new range of grease traps are the only products of their type that have been successfully tested using materials that match the FOG used in the food industry, as opposed to the traditional test method of using heating oils.

Applications
Typical applications where grease traps/separators may be required:

  • Bakeries
  • Canteens/kitchens
  • Fast food restaurants
  • Food processing factories
  • Hotels
  • Public houses
  • Restaurants
  • Social clubs



Benefits

  • Storage capacities ranging from 2,800-20,000 litres
  • Advanced coalescent filter system
  • Bespoke design tailored to individual project specifications
  • Adjustable turret and invert height
  • Optional Polylok filter for further wastewater treatment
  • Optional high level alarm

Specification

Model Size (litres) Width
+/-50mm
Length
+/-50mm
Height
+/-50mm
Inlet invert Inlet dia Outlet invert Outlet dia
MG2800 2800 1352 3040 1732 685 110 800 110
MG3800 3800 1352 4040 1732 685 110 800 110
MG4500 4500 1572 2960 2092 685 110 800 110
MG6000 6000 1952 3090 2332 685 110 800 110
MG8000 8000 1952 3780 2332 685 160 800 160
MG10000 10000 1952 4340 2332 685 160 800 160
MG12000 12000 1952 5640 2332 685 160 800 160
MG14000 14000 1952 5980 2332 685 160 800 160
MG16000 16000 1952 6840 2332 685 160 800 160
MG18000 18000 1952 7640 2332 685 160 800 160
MG20000 20000 1952 8240 2332 685 160 800 160





View full details
