Description

Designed and tested to BS EN858 parts 1&2, Marsh Hydroil forecourt oil separators are manufactured from virgin unfilled resin offering exceptional durability, impact resistance and are guaranteed to be watertight and of uniform thickness. These combined properties ensure that the full range of separators stand up to the most rigorous conditions during their service life.

Typical applications

• Petrol stations
• Refuel facilities
• Fuel storage sites

Marsh Hydroil forecourt separators are manufactured to a specific size in order to retain the potential spillage from a single compartment of a road tanker – currently up to 7,600 litres in the UK.

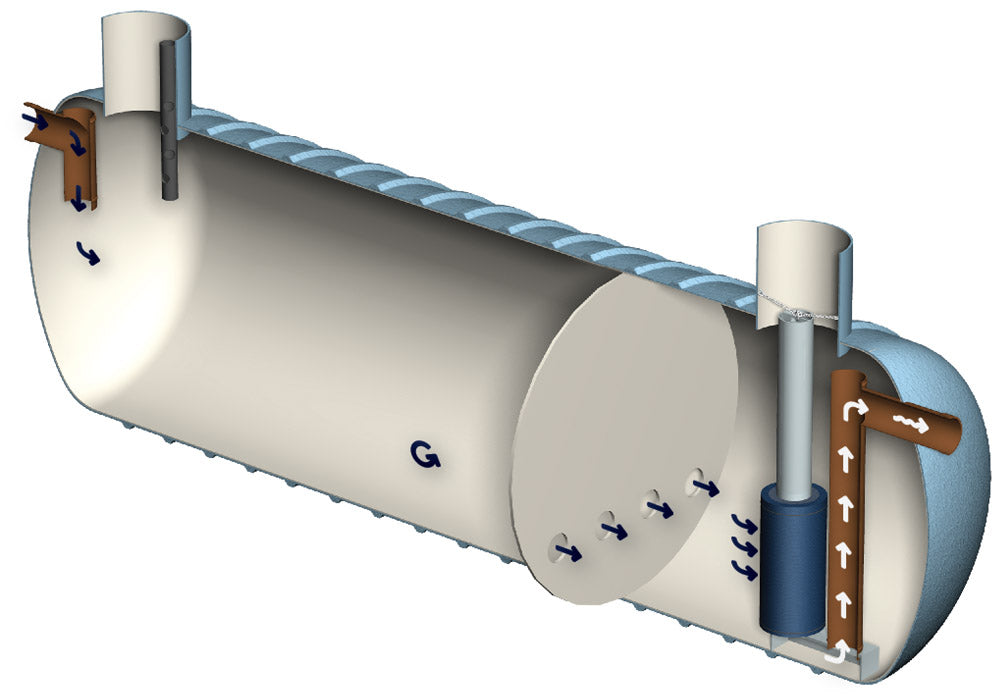

KEY

1. Inlet
2. Oil level alarm (in 3” pipe)
3. Coalescer
4. Outlet
5. Access turrets

FLOW PATH

Benefits

• Designed and tested to meet latest UK and European standards
• Corrosion resistant
• Tank shells guaranteed for 25 years with a design life of 50 years
• Heavy duty shells enable installation in all ground conditions
• Easy access turrets for maintenance and servicing (Turret guards optional)
• Various alarm types available (Required by EN858-1)
• Variable invert depths and inlet/outlet configurations ­­­to suit individual site conditions
• Vented turrets dissipate excessive fumes and vapours

Specification
