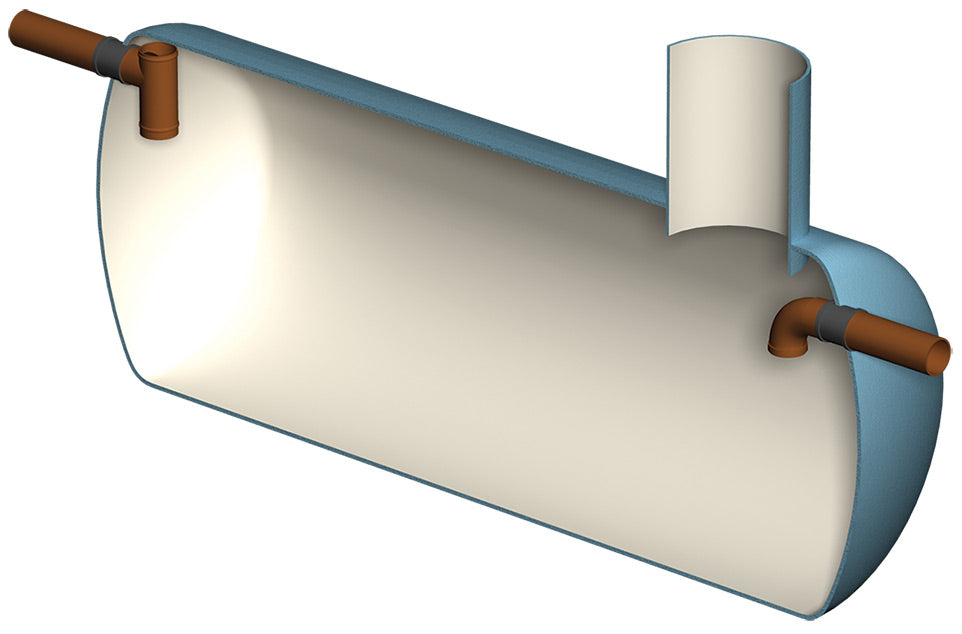

Marsh Hydroil Wash-down separators - 20,000 Litres
Marsh Hydroil Wash-down separators - 20,000 Litres
Description
Available in capacities from 2,800-20,000 litres, the Marsh washdown oil separator range safely removes silt and debris from vehicle wash-down facilities.
These units are primarily used on car wash bays, pressure wash facilities or other cleaning facilities where the effluent must be discharged to the foul water drainage system.
It is a legal requirement to install a silt trap or wash-down separator on commercial sites, such as vehicle wash bays, where there is an environmental risk of contamination from dirt, brake dust, traffic film residue, cleaning agents, oil, etc. In all cases, you should contact your local building control or environmental agency for specific site requirements.
Easy access turrets for maintenance and servicing (Turret guards optional) are available. Variable invert depths and inlet/outlet configurations are also available to suit individual site conditions. Please contact Marsh Industries upon specification.
As with all Marsh products, the tank body is guaranteed for 25 years with a design life of 50 years, providing it is installed in accordance with the manufacturers installation instructions
Typical applications
- Car Valets
Benefits
- Designed and tested to meet latest UK and European standards
- Corrosion resistant
- Tank shells guaranteed for 25 years with a design life of 50 years
- Heavy duty shells enable installation in all ground conditions
- Easy access turrets for maintenance and servicing (Turret guards optional)
- Various alarm types available (Required by EN858-1)
- Variable invert depths and inlet/outlet configurations to suit individual site conditions
- Vented turrets dissipate excessive fumes and vapours
Specification
Model | Capacity (litres) | Width +/-50mm |
Length +/-50mm |
Height +/-50mm |
Connection size | Inlet invert | Outlet invert |
---|---|---|---|---|---|---|---|
WD2800 | 2800 | 1200 | 3000 | 1715 | 110 | 700 | 750 |
WD3800 | 3800 | 1200 | 4000 | 1715 | 110 | 700 | 750 |
WD4500 | 4500 | 1500 | 2650 | 2015 | 110 | 700 | 750 |
WD6000 | 6000 | 1800 | 2950 | 2300 | 110 | 700 | 750 |
WD8000 | 8000 | 1800 | 3600 | 2300 | 160 | 700 | 750 |
WD10000 | 10000 | 1800 | 4200 | 2300 | 160 | 700 | 750 |
WD12000 | 12000 | 1800 | 5200 | 2300 | 160 | 700 | 750 |
WD15000 | 15000 | 2500 | 3100 | 3000 | 160 | 700 | 750 |
WD18000 | 18000 | 2500 | 4100 | 3000 | 160 | 700 | 750 |
WD20000 | 20000 | 2500 | 4500 | 3000 | 160 | 700 | 750 |
