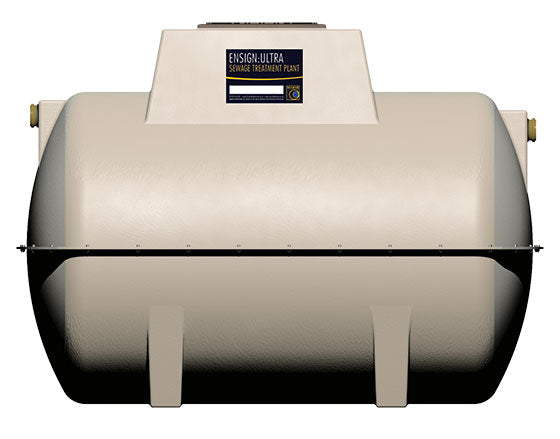

Ensign Ultra sewage treatment plants
Marsh Ensign Ultra sewage treatment plants are widely regarded as the most efficient, reliable and economical domestic systems on the market.
The standard Ensign has been adapted to improve reliability and the Ensign:Ultra now brings unique enhancements to further improve noise level, treatment efficiency and final effluent quality.
Class leading performance
Tested and approved to BSEN12566-3/A1:2009 all Ensign units provide treatment well within national consent requirements. Published test results of 11.5:19.2:8.4mg/ltr (BOD:suspended solids:ammonia), with influent concentrations on test higher than those chosen by most competitor plants, effectively equates to 97% pollutant removal.
Unrivalled choice
Ranging in size from 4 to 50 PE in Ultra, Standard and Shallow versions of each, and with a wide range of ancillaries, almost all site, consent and budget requirements can be met by units from the range.
Why choose the Marsh Ensign?
End users, merchants and installers alike recommend the Ensign range due to its ease of installation, reliability, and cost-effective operation and maintenance. All backed by technical support from local contacts.
In addition to anaerobic digestion taking place in the primary settlement chamber [2] the Ensign:Ultra unit allows the clarified water to pass into a second ‘aeration’ chamber [3] where it is treated to remove the dissolved constituents. Here aerobic bacteria, supported by diffused air and mobile media, ensures full treatment is achieved before the treated effluent and ‘sloughed off’ bacteria flows to a final settlement chamber [10]. The final effluent is then discharged to the drainage field or watercourse via a Polylok filter.
Benefits
-
-
Inlet with ‘Forsheda seal’
Forsheda seal provides flexibility in the joint for easier installation.
Optional risers to increase invert depth are available. - Primary settlement chamber
- Aeration chamber
-
Advanced compressor with alarm (Ensign:Ultra units only)
Near silent compressor ensures minimal running, maintenance and servicing costs. Integral alarm detects low pressure in air line. (Regular Low-energy compressor on Ensign:Standard models). -
Compressor housing – internal or external options available
The compressor can be housed internally or externally with no difference in cost.
External recommended to increase compressor life, and supplied as standard on 4PE, shallow and pumped outlet versions. -
RCD/Electrical connection (Ensign:Ultra units only)
The RCD box provides easier installation and proveds a higher degree of safety. (Regular plug/socket connection on Ensign:Standard models). -
PVC pressure pipe/diffuser(s)
Provides a protective conduit for the air diffuser line. Can be easily removed for maintenance and cleaning. -
Bio-media
High specification bio-media (310m3 per m2) and membrane diffusers ensure even circulation to eliminate ‘dead spots’. The bio-media is contained by a stainless steel securing mesh to ensure no migration during handling or potential flooding. -
Stainless steel mesh
Retains media in aeration chamber during transportation and handling, and in the event of flooding. - Final settlement chamber
-
32mm sludge return
Larger diameter sludge return prevents the possibility of blockages and improves system circulation. Provides higher effluent quality whilst balancing flow over a 24 hour period or periods of intermittent use. -
Unique Polylok tertiary filter (Ensign:Ultra units only)
The Polylok tertiary filter reduces suspended solids and BOD by a further 40% helping to extend drainage field life. -
Outlet with ‘Forsheda seal’
Forsheda seal provides flexibility in the joint for easier installation.
Optional pumped outlets are available. -
Impermeable lid
Heavy duty lid/frame improves strength and durability whilst blending into the surrounding environment. (Regular lid on Ensign:Standard models). -
Integral lifting eyes
For safe and secure on-site handling. -
Stabilising feet
Stabilising feet prevents the tank from rolling and allows safe and steady transportation and installation. -
Unique ‘keying-in’ lip
Assists anchoring into granular or concrete surrounds.
-
Inlet with ‘Forsheda seal’
Specification
Model (pop) | Length | Width +/-50mm | Height +/-50mm | Inlet invert +/-50mm | Inlet dia | Outlet invert | Outlet dia |
---|---|---|---|---|---|---|---|
4 | 1600 | 1332 | 1575 | 540 | 110 | 600 | 110 |
6 | 2602 | 1650 | 1935 | 550 | 110 | 625 | 110 |
8 | 2602 | 1650 | 1935 | 550 | 110 | 625 | 110 |
10 | 2602 | 1650 | 1935 | 550 | 110 | 625 | 110 |
12 | 2860 | 1912 | 2139 | 550 | 110 | 625 | 110 |
16 | 2860 | 1912 | 2284 | 720 | 110 | 800 | 110 |
20 | 3650 | 1912 | 2284 | 720 | 160 | 800 | 160 |
25 | 3650 | 1912 | 2284 | 770 | 160 | 850 | 160 |
30 | 4200 | 1912 | 2284 | 770 | 160 | 850 | 160 |
35 | 4200 | 1912 | 2284 | 770 | 160 | 850 | 160 |
40 | 5200 | 1912 | 2284 | 770 | 160 | 850 | 160 |
45 | 5200 | 1912 | 2284 | 770 | 160 | 850 | 160 |
50 | 5200 | 1912 | 2284 | 770 | 160 | 850 | 160 |
